MPLS VPN Implementation
YES LAB
Monitoring MPLS VPN Operations
VPNhkfr
YES LAB Outline
YES LAB
— Overview
— MonitoringVRFs
— MonitoringVRF Routing
— Monitoring MP-BGPSessions111frMP-BGPki1Ti
- Monitoringan MP-BGPVPNv4TablekfrMP-BGPVPNv4k
}Kiå+O+VRF CEF811LFlB
— Monitoring per-VRF CEF and LFIB Structures

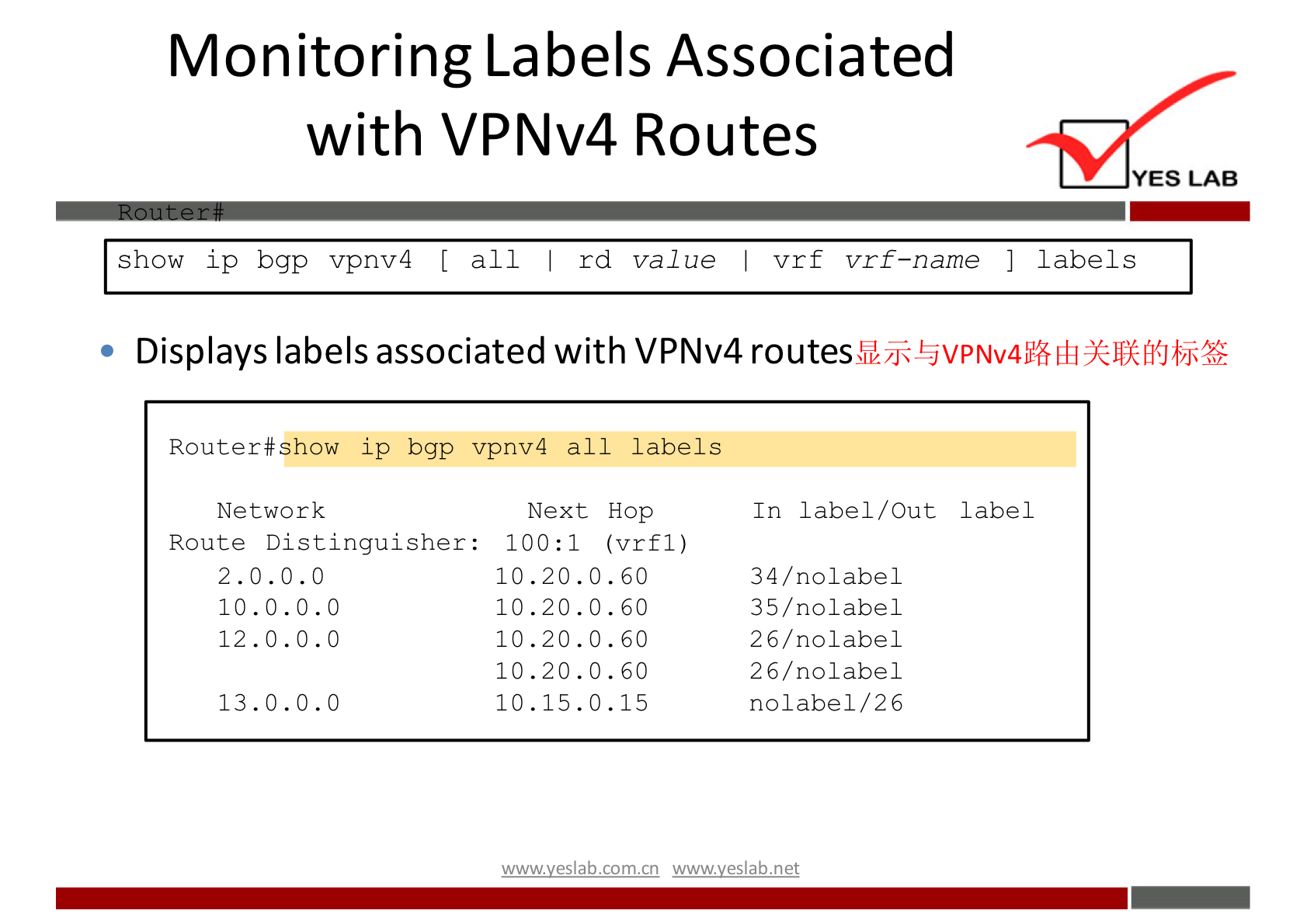

— Monitoring LabelsAssociated with VPNv4 Routes
fi-{J
iRYJlJJt-ftUMPLs
— IdentifyingOtherMPLS VPN Monitoring Commands
— Summary Monitoring VRFs
YES LAB
Router #
show ip vrf
Displays the list of all VRFs configured in the router
Router #
show ip vrf detail
Displays detailed VRF configuration
Router #
show ip vrf interfaces
Displays interfaces associated with VRFs MonitoringVRFs:
show ip vrf
Router# show
N ame
Si teA2
Si teB
Si tex
Router#
vrf
Default
103: 30
103: 11
103:20
RD
YES LAB
Interfaces
Serial 1/0.20
Serial 1/0.100
Ethernet 0/0 MonitoringVRFs:
show ip vrf interfaces
Router# show ip
Interface
Seriall/O .20
Seriall/O . 100
Ethernet0/0
vrf interfaces
IP-Address
150.1. 31.37
150.1. 32.33
192.168.22.3
VRF
S i teB
S i tex
YES LAB
Protocol
up
up
up Monitoring VRF Routing
YES LAB
Router#
show ip protocols vrf vrf-name
Displays the routing protocols configured in a VRF
Router#
show ip route vrf vrf—name
Displays the VRF routing table
WJÄVRF%lilk
Router#
show ip bgp vpnv4 vrf vrf-name
Displays per-VRF BGP parameters Monitoring MP-BGP Sessio
YES LAB
Router#
show ip bgp neighbors
This command displays global BGP neighbors and the
protocols negotiated with these neighbors. Monitoringan MP-BGP VPNv4 T
YES LAB
show ip bgp vpnv4 all
Displays whole VPNv4
Router #
show ip bgp vpnv4 vrf vrf-name
Displays only BGP parameters (routes or neighbors)
associated with specified VRF
Any BGP show command can be used with these parameters.
fffrJBGP
Router #
show ip bgp vpnv4 rd route—distinguisher
Displays only BGP parameters (routes or neighbors) associated with
the specified RD. Monitoring per-VRF CEF and LFIB
Structures
show ip cef vrf vrf—name
Displays per-VRF CEFtable
YWTJ$+VRF
Router #
show ip cef vrf vrf—name ip—prefix detail
Displays details of an individual CEF entry, including label
stack
Router #
show mpls forwarding vrf vrf—name
Displays labels allocated by an MPLS VPN for routes in the
specified VRF
YES LAB Other MPLS VPN Monitoring
Commands
telnet host /vrf vrf—name
Performs PE-CE Telnet through specified VRF
Telnet
Router #
ping vrf vrf—name ip—address
Performs ping based on VRF routing table
Router #
trace vrf vrf—narne ip—address
Performs VRF-based traceroute
YES LAB Summary
YES LAB
— Use the following commands to monitor VRF information:
• show ip vrf
• show ip vrf detail
• show ip vrf interfaces
— Use the following commands to monitor VRF routing:
• show ip protocols vrf vrf-name
• show ip route vrf vrf-name
• show ip bgp vpnv4 vrf vrf-name
— Use the show ip bgp neighbors command to monitor MP-BGP
fth}show ip bgp neighborsfr411fL$4MP-BGPfiÉ0
sessions.
